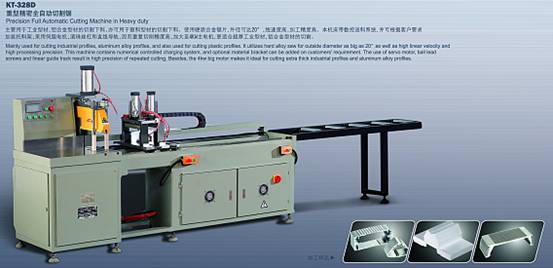

Aluminum Cutting Machine (Auto-feeding) KT-328D
Click to see big pic
Product Name:
Aluminum Cutting Machine (Auto-feeding) KT-328D
Sort:
Cutting Equipment
Company:
Shunde Kingtool Windows Doors Machinery Co., Ltd.
Location:
Contact Person:
Shirley Han
Post Time:
2014/7/2
Free Member
Shunde Kingtool Windows Doors Machinery Co., Ltd
Tel:
86-757-23618838
Fax:
86-757-28300003
Add:
Tianhe Industiral Zone ,Rongbian ,Ronggui ,Shunde ,Foshan ,Guangdong ,China
Post Code::
528305
E-mail:
sales@aluminum-machine.com
Details
Mainly used for cutting and laying off industrial profiles, aluminum alloy curtain wall materials, gussets and window materials, and also used for cutting and laying off plastic profiles. It utilizes hard alloy saw blade for outside diameter as big as 20" as well as high linear velocity and high processing procession. This machine contains numerical controlled charging system, and optional material bracket can be added on customer's request. The use of servomotor, ball screws and linear guide track results in high precision repeated cutting. Besides, the 4KW big motor makes it ideas for cutting industrial profiles, heat insulation profile gussets and aluminum curtain wall materials.
MAIN TECHNIQUE PARAMETER
1.Cutting length.............................10~1550mm
2.Cutting width * height.....................230*150mm
.....................280*110mm
3.Power of main motor........................4KW
4.Main motor rotation speed..................2840r/min
5.Saw blade dimension........................D500*d30*120T
6.Saw blade feeding speed....................0~3m/min
7.Saw blade retracting speed.................2~3m/min
8.Max. speed for automatic feeding...........11.6m/min
9.Operation air pressure.....................0.6~0.8Mpa
10.Operation voltage.........................380V
11.Overall dimension (L*W*H).................6500*850*1720mm
12.Weight....................................1500KG
