> End Milling Machine for window and door KT-313G
【Sell】

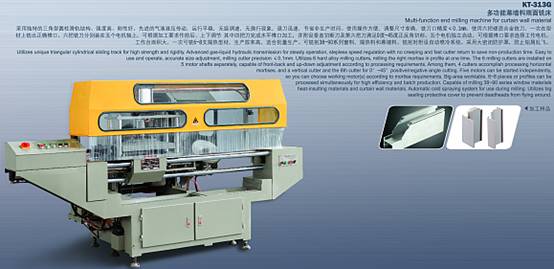

End Milling Machine for window and door KT-313G
Click to see big pic
Product Name:
End Milling Machine for window and door KT-313G
Sort:
Others
Company:
Shunde Kingtool Windows Doors Machinery Co., Ltd.
Location:
Contact Person:
Shirley Han
Post Time:
2025/2/11
Free Member
Shunde Kingtool Windows Doors Machinery Co., Ltd
Tel:
86-757-23618838
Fax:
86-757-28300003
Add:
Tianhe Industiral Zone ,Rongbian ,Ronggui ,Shunde ,Foshan ,Guangdong ,China
Post Code::
528305
E-mail:
sales@aluminum-machine.com
Details
1 Adopted particular structure of triangular cylindrical sliding track, for high strength and rigidity.
2 Move smoothly, stepless speed adjusting available, no creeping, the blade retract quickly, save non-production time.
3 Operate easily, adjust size accurately, milling precision<=0.1mm.
4 With 6 pieces of milling cutters to mill out right tenon one time.
5 6 pieces of milling cutters are installed in shafts of 5 main electromotors, capable of front-rear and up-down adjustment according to processing requirements. Among them, 4 pieces of cutters accomplish processing horizontal tenons, one for vertically cutting and the 6th cutter for 0-45 degree positive/negative angle cutting.
6 Five motors can be started independently, so you can choose working motor(s) according to tenon requirements.
7 Big-area worktable, 6-8 pieces of profiles can be processed simultaneously for high efficiency and batch production.
8 Capable of milling 38-90 series window materials, heat insulation materials and curtain wall materials.
9 Automatic pneumatic spray mist blade lubrication coolant system.
10 Utilizes big sealing protective cover to prevent deadheads from flying around.
MAIN TECHNIQUE PARAMETER
1.Power supply..........................380V/50Hz
2.Total power of motor.................3*2.2KW+2*1.1KW=8.8KW
3.Operation air pressure................0.6-0.8Mpa(adjustable)
4.Main shaft rotation speed.................2840r/min
5.End plane cutting depth and height
..........................0-80mm(depth) vertical height 120mm
6.Cutter dimension.....................D250*d50*6.5mm
......................D300*d30*3.2mm
.......................D350*d30*3.2mm
7.Worktable dimension (L*W)................505*330mm
8.Milling travel............................1400mm
9.Overall dimension (L*W*H)..................3000*1100*1650mm
10.Weight...................................1800KG
