Details

Aluminium wire rod , details as follows:

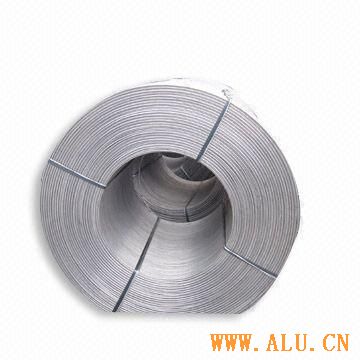

1. Material Name : Aluminum Wire Rod

As per the following Specifications:
2. Nominal Diameter : 9.5 mm +/- 0.76 mm

3. Chemical Composition alloy : 1370 EC 99.7% Min.
According to DIN 1712 or ASTM standards.
Si : 0.10
Fe : 0.25
Cu : 0.02
Mn : 0.01
Mg : 0.02
Zn : 0.04
Ti+V : 0.02
B : 0.02
Ga : 0.03
Cr : 0.01

4. Mechanical Requirement For 200 mm Sample at Speed Max. 300 mm / Min.

- Tensile Strength : Max. 100 MPA
- Elongation at break : Min. 20%


5. Conductivity at 20 Co : Min. 35.7 MS.M

6. Surface : Clean, Smooth, Free Of Laps, Cracks, Kinks, Twist, Seams, Damaged Ends, Excessive Oil And Other Imperfection.



7. Packing : Coils packed ACC to. ASTM B 233 .
Coil weight not less than 2.0 MT
