We'd kindly inform you that we need anodizing tank for aluminium profiles , specification as follows :

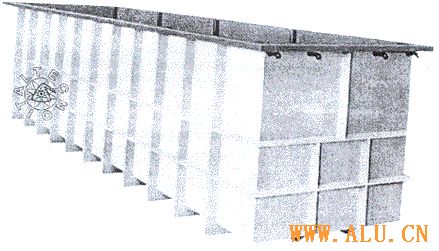

Anodizing Tank
Description :
Tank is of steel sheet , thickness : 5 mm
The external supports are of steel plates 160 x 15 - 160 x 12 - 120 x 10
The edges are of L steel sheet 180 x 60 x 5 mm
Coating external : anti-acid paint
Coating internal : PVC thickness 2.0 mm


Each tank is complete of :
Double electric armature with alum bars in opposed entries
Side section bars : Sq. mm 5000
Central section bars : Sq. mm 10000
Head section bars : Sq. mm 20000
Cathodes made of extruded aluminium
Section: Sq. mm 1440
Cathode perimeter : mm 440
External cathodes
Central cathodes
Supports bearing the central branch of the electrical armature consisting of:
Iron pipe fastened on tank bottom and protected with the PVC pipe.
Bottom plates coated with PVC sheet
Pipe caps with guide for central bars
Frame consisting of PVC tubular for protection of cathodes and bearing the air tubes for stirring.
Bath stirring consisting of two PVC Dia. 32 mm tubes.
V-Supports of steel inox AISI 304 for anodic bars.
PVC socket complete of bush, collar, NP 10 ND 100 flange for Sulphuric Acid inlet .
PVC socket complete of bush, collar, VP 10 ND 100 Flange for Sulphuric Acid outlet. Complete of screw assemblies.
PVC drilled pipe dia. 110 mm complete of supports for cooling Sulphuric acid distribution.
Steel flange NP 10 ND 50 coating with PVC
PVC discharge valve NP 10 ND 80
Water inlet with dia. 32 mm - PVC tube
Inlet of Sulphuric acid with PVC dia. 32 mm - tube


Specification:
Working temperature : 21 C
Capacity : cu.m 29.5
Internal dimensions : 8500 x 1400 x 2500 mm
External dimension : 8860 x 1760 x 2660 mm
Temperature in the tank may be between 10 - 60 C
Current in tank 20000 A
Voltage 20 V
Concentration of Sulphuric acid 160 - 220 g/L

Quantity : One Tank




Acid Neutralization Tank

Description:
* Tank are of steel sheet thickness 5 mm
* The external support are of steel plates 160 x 15 - 160 x 12 - 120 x 10
* The edges of L steel sheet 180 x 60 x 5 mm
* Coating external : anti-acid paint
* Coating internal : PVC thick 2 mm


Complete with:
Supports of steel inox for anodic bars
PVC exhaust valve NP 10 ND 80
PVC tube dia. 32 and joints for water inlet
PVC tube dia.. 32 and joint for acid inlet.

Specification:
Working temperature : room temp.
Capacity : cu.m 25.5
Internal dimensions : 8500 x 1200 x 2500 mm
External dimensions : 8860 x 1560 x 2660 mm
Acid con. ( 50-100) g/L

Quantity : One Tank




Rinsing Tank
Description :
* Tank are of steel sheet thickness 5 mm
* The external support are of steel plates 160 x 15 - 160 x 12 - 120 x 10
* The edges of L steel sheet 180 x 60 x 5 mm
* Coating external : anti-acid paint
* Coating internal : PVC thick 2 mm


Complete with :
Bath stirring consisting of one PVC dia. 32 mm - tube , drilled and fastened with adequate supports on tank bottom
Channel - shaped sluice for the upper level, made of steel sheet, dimension in 200 x 180 x 5 mm
Supports of steel inox for anodic bars
PVC dia. 100 exhaust valve NP 10 ND 80
PVC tube dia. 40 and joints for water inlet


Specification :
Working temperature : room
Capacity : cu.m. 25.5
Internal dimension : 8500 x 1200 x 2500 mm
External dimension : 8860 x 1560 x 2660 mm

This tank is used to remove the effects of solution of cleaning , etching, neutralization and anodizing tanks

Quantity : One Tank
