Detail Information

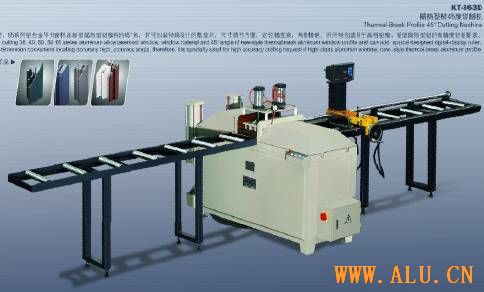

This machine is used for cutting 38,40,50,52,65 series aluminum alloy casement window, window material and 45 degree angle of new size thermal-break aluminum window profile, and can install special design digital-display ruler in addition, adjust dimension conveniently, locating accuracy high, accuracy angle, therefore, it is specially fit for high accuracy cutting request of high-class aluminum window, new size thermal-break aluminum profile.
MAIN TECHNIQUE PARAMETER
1.Cutter shaft rotation speed...................2850r/min
2.Cylinder feeding travel.......................750mm
3.Working air pressure..........................0.6~0.7Mpa
4.Saw blade dimension...........................D330*3.5*120T
5.Max. cutting height...........................85mm
6.Cutting window profile number every time......4 pieces
7.Motor power...................................2*1.1KW
8.The length of electronic ruler................2000mm
9.Overall dimension(L*W*H)......................5900*1870*1390mm
10.Weight.......................................900KG
