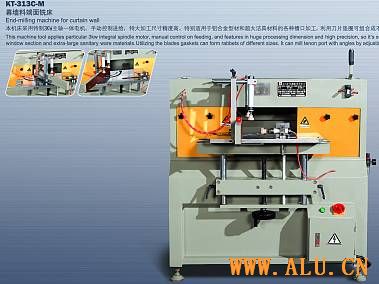

Product Name:End-milling machine for curtain wall KT-313C/M
Sort:Aluminum Ingot
Company:Shunde Kingtool Windows Doors Machinery Co., Ltd
Location: China
Contact Person:Shirley Han
Post Time:2014/6/30
Free Member
Shunde Kingtool Windows Doors Machinery Co., Ltd
Tel:86-757-23618838
Fax:86-757-28300003
Add:Tianhe Industiral Zone ,Rongbian ,Ronggui ,Shunde ,Foshan ,Guangdong ,China
Post Code::528305
E-mail:sales@aluminum-machine.com
Detail Information
This machine tool applies particular 3 KW integral spindle motor, manual control station feeding, and features in huge processing dimension and high precision, so it's very suitable for the rabbet processing of Aluminum alloy curtain wall materials, window section and super-large sanitary wares. Utilize the blades gaskets can form rabbets of different sizes.It can mill tenon port with angles by adjusting.
MAIN TECHNIQUE PARAMETER
1.Working air pressure.................................0.6-0.8Mpa
2.Air consumption.......................................200 L/min
3.Main motor power.........................................3KW
4.Main motor rotation speed.............................2840 rpm
5.Milling cutter dimension(single blade)............Φ350×Φ32×10×60T
6.Workable section material terminal face ( W x H )......350×300mm
7.Worktable top and bottom adjusting height................200mm
8.Worktable adjustable angle range................(-1 5°~90°~+15°)
9.Workable section material depth........................120mm
10.Motor axis depth height..............................130mm
11.Overall dimension (L×W×H).......................880(2400)*1350*1720mm
12.Weight..............................................450Kg
