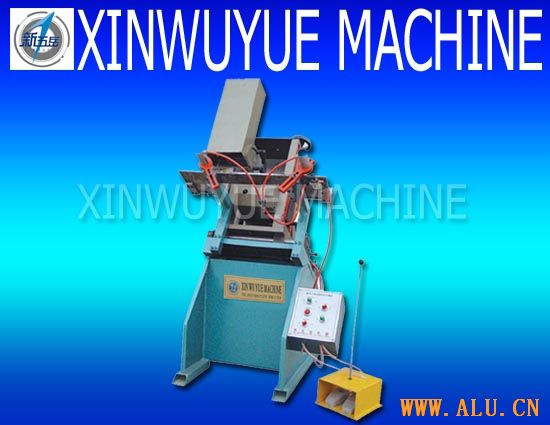

Product Name:auto water slot milling machine(two axis)
Sort:Others
Company:Jinan xinwuyue machinery factory
Location: China
Contact Person:An Baohua
Post Time:2009/8/19
Free Member
Jinan xinwuyue machinery factory
Tel:86-531-88268516
Fax:86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,China
Post Code::250101
E-mail:xwy.an@hotmail.com
Detail Information
1 Be specialized for milling all kinds of water slots and air pressure balance grooves.
2.Equipped with two milling head in the upside and horizontal direction. The upper milling cutter can be adjusted between the angles of 0°-45°.
3.The machine head can be adjusted up and down, foreword and backward. Clamping once can realize processing simultaneously from two directions.
4. Have features of high production efficiency production stable function, easy operating, and so on.
Technical parameter
Input power 220v 50Hz
Power 2×0.5KW
Gas consumption 30L/min
motor speed 25000r/min
The maximum length of milling flutes 60mm
The maximum deepness of milling flutes 40mm
Dimensions 2940×860×1660mm
Weight 290kg
