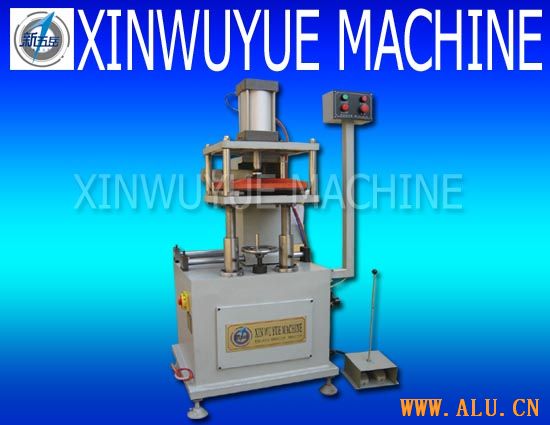

Product Name:alu profile composing end milling machine
Sort:Others
Company:Jinan xinwuyue machinery factory
Location: China
Contact Person:An Baohua
Post Time:2009/8/19
Free Member
Jinan xinwuyue machinery factory
Tel:86-531-88268516
Fax:86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,China
Post Code::250101
E-mail:xwy.an@hotmail.com
Detail Information
features and functions:
1.It can be expected to complete the multi-processing at the same time, suitable for processing a variety of end-profiles, the processing of step.
2.Have the compact structure with large processing range, easy to operate, high production efficiency.
3.Feed system adopt cylinder, cutting feed stable, cutting accuracy and good surface quality.
4.With high-precision spindle, so that the processing of high accuracy, stability
5.Table adjustable up and down, to facilitate transfer knife.
6.Tool axis’ connection through the coupling, the electrical functioning of the spindle does not affect the accuracy of the work of precision cutting tools. 7.Into the use of knives in a straight line, the working performance is stability.
technical parameter:
Power:380V 50Hz (three-phase four-wire)
Electric power: 1.5KW
Air pressure : 0.5-0 .8 M pa
Spindle diameter: Φ32mm
Cutter diameter: Φ100mm-Φ200mm
Can be installed cutter width: 90mm
Take-off and landing platform trip :0-80mm
Size: (length width × high ×) 850mm × 740mm × 1300mm
Weight: 260Kg
