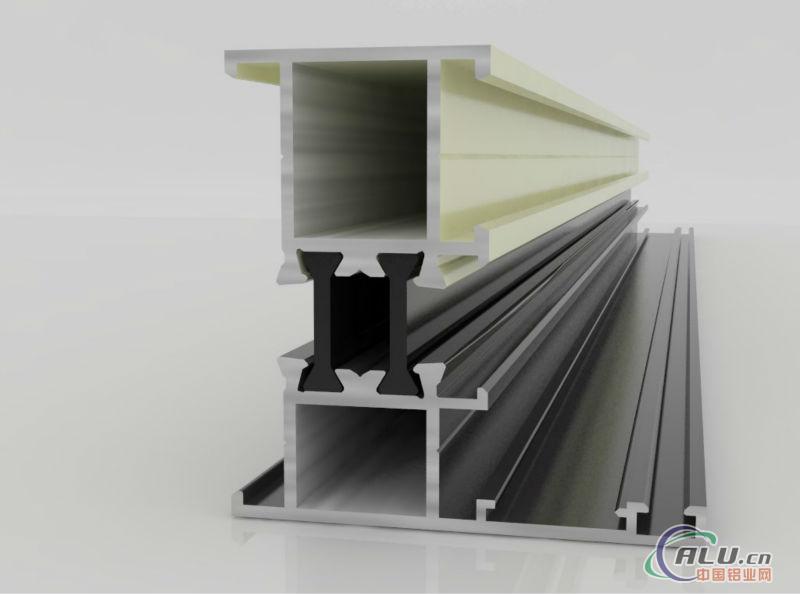

thermal break insertion machine Processing method: Profiles with teeth---strip insertion Function: Insert thermal barrier strip into aluminum profile. Working principle: Adopting four special gear wheels and using the guiding slot improves the accuracy of feeding thermal barrier strip in slot of aluminum profile. Features: 1.2 insertion heads. 2.Each head is driven by a motor. Both of them could be adjusted horizontally and vertically by CNC system. 3.Four tempered feeding wheels. 4.Insulating bar guides are made of special steel. 5.Changeable steel fingers for precise profile centration. 6.A pedal switch. 7.Stepless speed regulation is available with a frequency converter. Technical data: Voltage: 380V/50Hz Total power: 1.28Kw Speed: 70m/min Auxiliary frame: W*L=500mm*6600mm Overall dimension: L*W*H=1300mm*850mm*1350mm Weight: 200Kg Guarantee 1.Engineers available to service machinery overseas 2, Warranty: one year for whole machine, two years for main components and whole life service 3, Free to train operator and maintainer (the travel expense is not included) 4, Free to provide the latest development technology
