【Sell】
ac fan,cooling fan,axial fan,blower fan,axial flow fan

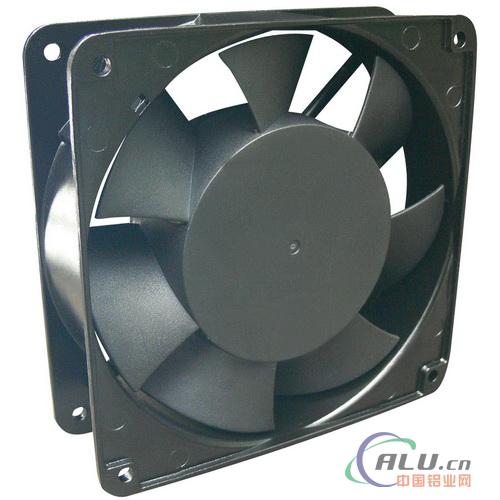

Click to see big pic
Product Name:
ac fan,cooling fan,axial fan,blower fan,axial flow fan
Sort:
Cooling Equipment
Company:
Veton(HK) Technology Co.,Ltd.
Location:
GuangZhou
Contact Person:
Post Time:
2024/10/24
Free Member
Veton(HK) Technology Co.,Ltd
Tel:
0769-87082381
Fax:
0769-87082381
Add:
No.28,Lane 13,Baoanxu road,Shuikou,Dalang Town,Dongguan, Guangdong,China
Post Code::
518132
E-mail:
htsales@htfanner.com
Details
AC FANS
1) Dimension(L*W* H) :
a)80*71.5*25mm b)80*71.5*38mm c) 92*82.5*25mm
d)92*82.5*38mm e)110*90*25mm f) 120*105*25mm
g) 120*105*38mm h) 135*111*38mm i)150*122*50mm
j) 172*162*51mm k)200*167*60mm
2) Rated voltage: AC 110V 60HZ, AC 220V 50HZ
3) Type: ball bearing, sleeve bearing
4) Safety Approvals: CE, TUV, UL, CUL, CCC
Function:PWM,FG,RD,waterproof can be add on these fans
5)Electric strength: AC 1500V for 3 sec (﹤0.5mA allowable between lead wire and frame.
6) Insulation resistance: 10M ohm between lead wire and frame (DC 500V)
7) Life expectancy (ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
8)Life expectancy(sleeve bearing):＞30,000hrs rain at 25 degree C relative humidity 65%+/-20%
9)Operation temperature:-10 to 70C
10)Storage temperature:-40 to 75C
11) Lead Wire: UL1007 (AWG18-30)
12) Protection: Motor protection and polarity protection
13) Plastic Material: Black PBT (UL 94v-0) glass filled
14) Frame: aluminum alloy Impeller: Plastic
15) Electric Strength: AC 1500V for 3 sec
