【Sell】
Aluminum Foil Container Making Machine
Click to see big pic
Product Name:
Aluminum Foil Container Making Machine
Sort:
Aluminum Ingot
Company:
Shanghai Silver Engineer Industry Co. Limited.
Location:
ZheJiang
Contact Person:
Post Time:
2013/5/4
Free Member
Shanghai Silver Engineer Industry Co. Limited
Tel:
0086-21-33528945
Fax:
Add:
Xinlv RD.56#,Xinbang Industry park,Songjiang Area,ShangHai
Post Code::
E-mail:
doweller218@hotmail.com
Details

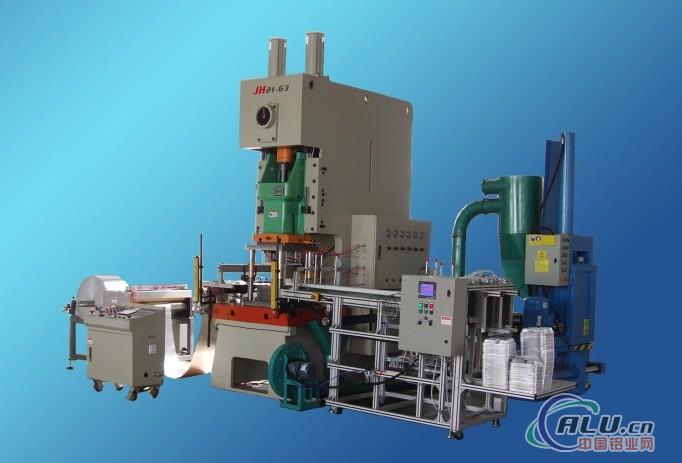

Automatic Aluminum Foil Container Production Line
Model: SEAC-63A
Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.040mm~0.250mm;
Alloy: 8011,8006,3003,3005 etc.;
2.Japan Inverter,PLC and 10inch touch screen control system;
3.Max. width of Aluminum foil : 800mm;
4.Max. diameter of Aluminum foil : 700mm;
5.Core diameter of Aluminum foil : 76/152mm;
6.Working speed: 40-65 times/min;
7.Total Power :12.5kw+2kw+2kw+1kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9.Install dimension: 5800*2600*3200mm;
Technical Data:
Max.container size: single cavity 550*400*100mm ;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1200*900mm; 2plate thickness 100/50mm;
Mould handle hole dimension: 50*60mm(Diameter*Depth);
Power: 4P, 380V or 220V,50Hz /60Hz;
Net weight: 9,500kg.
SE have the Press model: 45ton, 63Ton, 80ton, Common Feeder and Embossing Feeder ,Common Collector and Auto Stacker for your option. SEAC-63 is the perfect model to produce food containers. The container's quality accord to the International Environment Protect Standard.
The Embossing Feeder is a nice design, it's a amphibious feeder,it could embossing the foil together feeding;and you can use it only to feeding foil, only need to adjust the emboss unit,so easy !
Auto Stacker will help you upgrade company capacity level and save labour cost !
