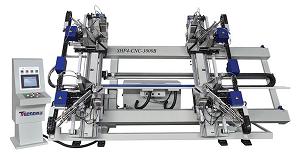

Pvc Window And Door Machine-CNC Vertical Four-point Welding Machine
Click to see big pic
Product Name:
Pvc Window And Door Machine-CNC Vertical Four-point Welding Machine
Sort:
Others
Company:
Jinan TECNO Machinery Manufacturing Co., Ltd..
Location:
Contact Person:
linda
Post Time:
2025/3/24
Free Member
Jinan TECNO Machinery Manufacturing Co., Ltd.
Tel:
86-0531-58761591
Fax:
86-0531-58815807
Add:
Tianchen Street Hi-Tech Area,Jinan,China
Post Code::
250100
E-mail:
lindayu@tecnomachinery.com
Details
Introduction:
◎ One working circle, one frame.
◎ The machine heads automatically back to the origin position, easy operation.
◎ Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
◎ Size tolerance compensation is available to increase welding precision.
◎ Common profile fixture along with the machine can meet various height profiles' processing requirement.
◎ The length located by ball screw makes high accuracy.
◎ Back plates are convenience to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increase the welding strength.
◎ Imported computer control system, easy operation and high stability.
Technical Parameter:
Model SHP4-CNC-3000B
Input voltage 380V/50Hz
Input power 10Kw
Spindle power 5.5Kw
Air pressure 0.6-0.8MPa
Air consumption 200L/min
Welding height 25-150mm
Max. Welding width 140mm
Welding range 400×400-1800×3000mm
Overall dimension 5000×2000×2860mm
