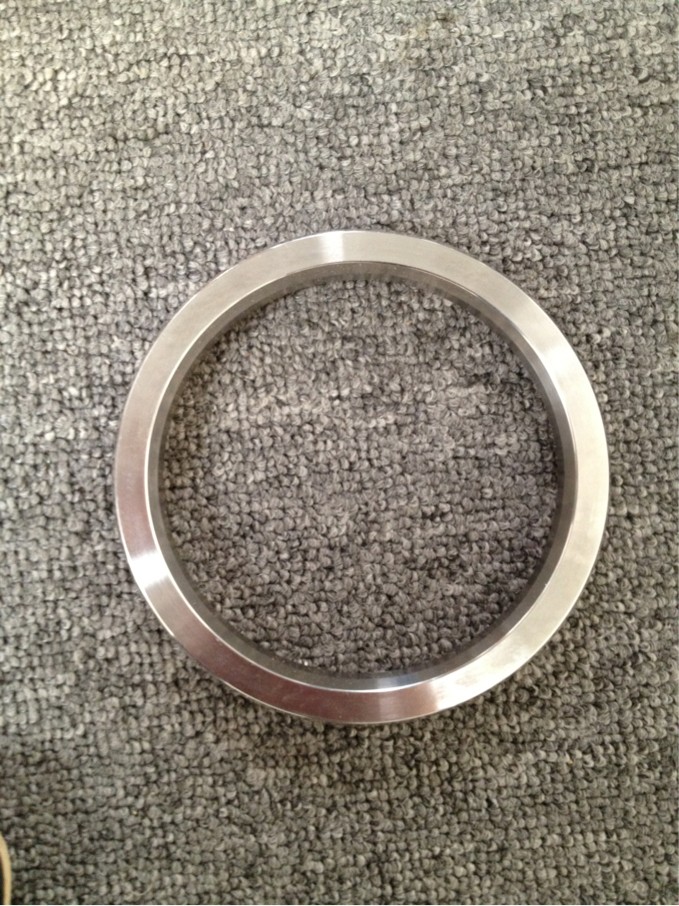

Metal Ring Joint Gasket(Oval,Octagonal type)
Click to see big pic
Product Name:
Metal Ring Joint Gasket(Oval,Octagonal type)
Sort:
Others
Company:
Ningbo Sunwell Sealing Materials Co.,Ltd.
Location:
Contact Person:
Tracy Hu
Post Time:
2024/9/3
Free Member
Ningbo Sunwell Sealing Materials Co.,Ltd
Tel:
86-0574-23450032
Fax:
86-0574-23450015
Add:
No.500, West Beisanhuan Road,Cixi,Zhejiang,China
Post Code::
315300
E-mail:
tracy.hu@sunwellseals.com
Details
The ring type joint was initially developed for high pressure and temperature applications found in the petroleum industry and is primarily used in the oil field on drilling and completion equipments. However, today this product range can also be found on valves and pipework assemblies, along with some high integrity pressure vessel joints.
Ring Joint Gasket Tolerances (Inches)
> "A" Width of ring: +/-0.008
> "B" "H" Height of ring: +/-0.020
> "P" Average pitch diameter of ring: +/-0.007
> "23o" Angle: +/- 1/2o
Ring Joint Gasket Standard
Standard style R ring type joints are manufactured in accordance with both API 6A and ASME B16.20 size and ratings. Available in both oval and octagonal configurations, both types are interchangeable on the modern octagonal type grooved flanges.
As with all metal ring type joints including style R, it is recommended to replace the ring when flange connection is broken.
