> Window Door Corner Crimping Machine KT-333F
【Sell】

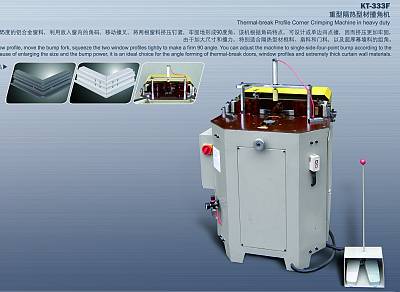

Window Door Corner Crimping Machine KT-333F
Click to see big pic
Product Name:
Window Door Corner Crimping Machine KT-333F
Sort:
Others
Company:
Shunde Kingtool Windows Doors Machinery Co., Ltd.
Location:
Contact Person:
Shirley Han
Post Time:
2014/7/2
Free Member
Shunde Kingtool Windows Doors Machinery Co., Ltd
Tel:
86-757-23618838
Fax:
86-757-28300003
Add:
Tianhe Industiral Zone ,Rongbian ,Ronggui ,Shunde ,Foshan ,Guangdong ,China
Post Code::
528305
E-mail:
sales@aluminum-machine.com
Details
Put the gusset into the 45 degree aluminum alloy window profile, move the bump folks, squeeze the two window profile tightly and make a 90 degree angle firmly. You can adjust the machine to 1-side-four-point crimping according to the characteristic of the gusset. Because of enlarging the size and the crimping force, it is an ideal choice for the corner crimping of thermal-break door and window profiles.
MAIN TECHNIQUE PARAMETER
1.Oil pump motor power............3KW
2.Oil pump rated pressure..........20Mpa
3.Max. working travel..............70mm
4.Max. working push power.........8000KG
5.Working air pressure...........0.6-0.7Mpa
6.Impact point adjustable range.......8-100mm
7.Overall dimension (L*W*H)........1200x1100x1350mm
8.Weight..............................700Kg
