> C5123E Single Column Vertical Lathe
【Sell】

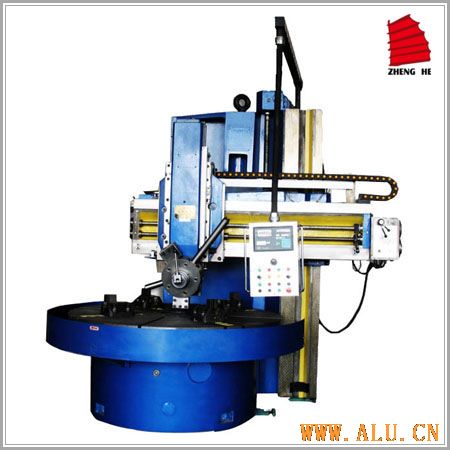

C5123E Single Column Vertical Lathe
Click to see big pic
Product Name:
C5123E Single Column Vertical Lathe
Sort:
Industrial furnace
Company:
Dalian Zhenghe International Trade Co. Ltd.
Location:
Contact Person:
Tanya Tang
Post Time:
2024/1/1
Free Member
Dalian Zhenghe International Trade Co. Ltd
Tel:
86-411-84113739
Fax:
86-411-84115311
Add:
Ruyi street,Shahekou District,Dalian,Liaoning,China.
Post Code::
116021
E-mail:
sales@vertical-lathes.com
Details
C5123E Single Column Vertical Lathes
This vertical lathes has excellent quality,which can be No.1 in China.
Both the crossbeam guide rail and ram guide rail are processed by the super audio quench(HRC≥50), the sliding surface of guide rail is processed by model sticked(including oblique iron surface and plate surface ),the product's accuracy can stay for a long time,at least may extend the huge mend cycle to up 10 years
All the casting used on the lathe is HT300,with manual heat timeliness processed.All the casting will never do any lose weight processings,the whole body's weight is match up to the standard weight.
The pentagon knife table adopts high accuracy mouth-tooth plate to positioned.Each of the 120 parts positioned separately,greatly strengthened rigidity.
The VTL machine is standard equipped with 4 axis digital displayed,electricity uses Japan Omron PLC controlled,all the electric parts are uses super high quality components,standard(CE standard) wiring craft,so the whole machine's electricity has high reliability.Electronic valve,16 level mechanical speed changing,convenient,flexible and reliable.High accuracy grinding gears and grinding spiral umbrella(level 6 accuracy),low noise and translation motion.
Both the lathes design and manufacture are strictly according to JB/T4116-96 vertical lathe accuracy test standard and JB/3665-96 vertical lathe technical conditions.
For completed accessories configuration,the users can go into production when only well prepared knife tools and measure tools.Completed after sales service(before sales,in sales,after sales,installation,debugging,training and repair guaranteed),one year quality guaranteed.
Optional configurations:rolling worktable,Germany Mecano button station,higher lathe bed,lengthen ram,square ram,etc.
