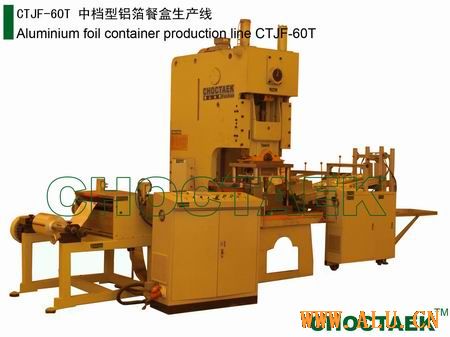

Aluminum foil container production line CTJF-60T
Click to see big pic
Product Name:
Aluminum foil container production line CTJF-60T
Sort:
Aluminium Foil
Company:
FOSHAN CHOCTAEK MACHINERY MOULD FACTORY.
Location:
Contact Person:
ann
Post Time:
2025/1/30
Free Member
FOSHAN CHOCTAEK MACHINERY MOULD FACTORY
Tel:
85519885
Fax:
85529852
Add:
1#Kanxia industrial Park.Dali Town,Nanhai District,Foshan.
Post Code::
528231
E-mail:
choctaek05@hotmail.com
Details
Aluminium foil container production line CTJF-60T can produce aluminium foil food containers, dishes and trays. The working speed of production line CTJF-45T is 40-60 pcs/min , and its speed depends on container’s size and complexity.
Aluminum foil container making machine CTJF-60T is composed of the followings:
1. Decoiler (with an auto-lubricator)
2. Electrical control panel
3. Foil feeder
4. 60 ton pneumatic press
5. Aluminium foil container mould
6. Container collector(semi-auto or full-auto)
7. Collection desk
Main Features:
(1) This full production line work automatically. Worker control and regulate this production line through electric control panel, including the air-pressure and electricty.
(2) The Max.width of decoiler is about 650mm. The Max. Diameter of foil roll is 760mm.
(3) There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
(4) The foil feeder provides the supply of right quantity and length of aluminium foil,and it is controlled by computer, which assure a high-precision step.
(5) The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when change a mould.
(6) We can design and manufacture different machines on different customers' request.
The working flow of production line CTJF-60T:
Aluminium foil roll---decoiler---foil feeder---60T pneumatic press---mould---container collector--- collection desk
