> Aluminium Step Tiles Forming Machine
【Sell】

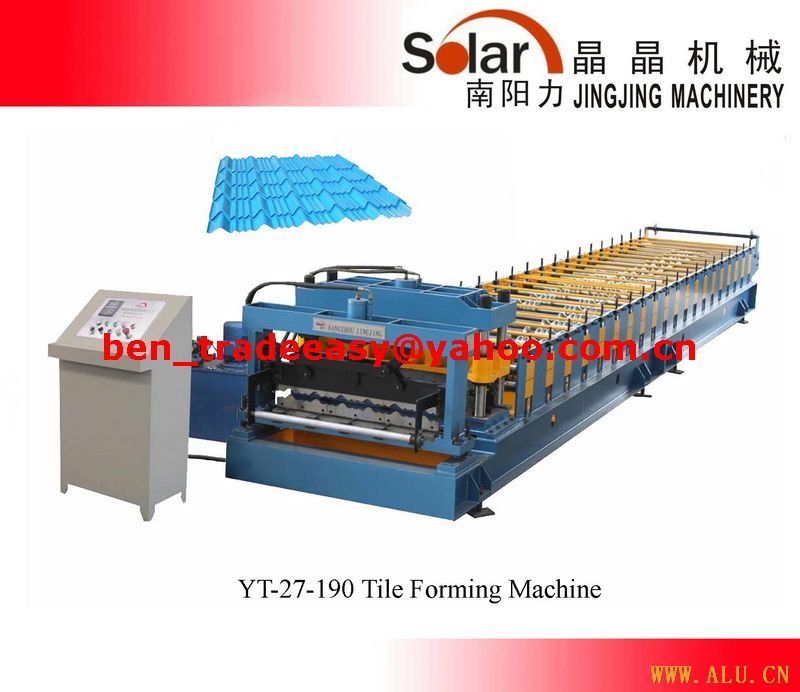

Aluminium Step Tiles Forming Machine
Click to see big pic
Product Name:
Aluminium Step Tiles Forming Machine
Sort:
Equipment for cold rolling
Company:
Metal Roll Forming Machinery.
Location:
Contact Person:
Ben Ku
Post Time:
2025/3/13
Free Member
Metal Roll Forming Machinery
Tel:
008615868142550
Fax:
Add:
metalrollformer@yahoo.com
Post Code::
311202
E-mail:
metalrollformer@yahoo.com
Details
Introduction of Oven Baked Aluminum Roofing Steptile Sheet Corrugating Machine
The stepped roof tile panel manufacturing machine is making aluminum roof step tile with a good quality. This tile corrugation machine consists of decoiler, sheet guiding equipment, rollforming section, punching equipment, cutter, supporter, hydraulic system, control system. The finished steel & aluminium steptiles roofing sheets can be widely used in garden factory, resort, pavilions, hotel and villa, exhibition hall, vacationland.
Main Technical Parameters
1. Material Spec : G220-280; Thickness : 0.4 mm to 0.6 mm
2. Hydraulic decoiler Max. Capacity: 5000kgs
3.Controlling system: PLC
4.Main machine power: 7.5kw Hydraulic station power: 5.5kw
5.Step length: 200-350mm Step height: 14mm
6.Working speed: 1.5-5.5 meters/min
7.Type of cutting: roll-formed and length-set cutting
8.Power: 380V/3ph/50Hz or at the buyer's requirement
