Down pillow machine
Click to see big pic
Product Name:
Down pillow machine
Sort:
Others
Company:
QINGDAO LION machinery CO.LTD..
Location:
Contact Person:
Emma Wang
Post Time:
2024/11/18
Free Member
QINGDAO LION machinery CO.LTD.
Tel:
86-532-88135195-8013
Fax:
Add:
No.666 Haibin 12 Road Jiaonan Qingdao City Shandong Province China
Post Code::
266555
E-mail:
lion01@pillowmachinery.com
Details
Specification:
Item no.: QL002-MT
Layout dimension: 6000*2500*3600mm

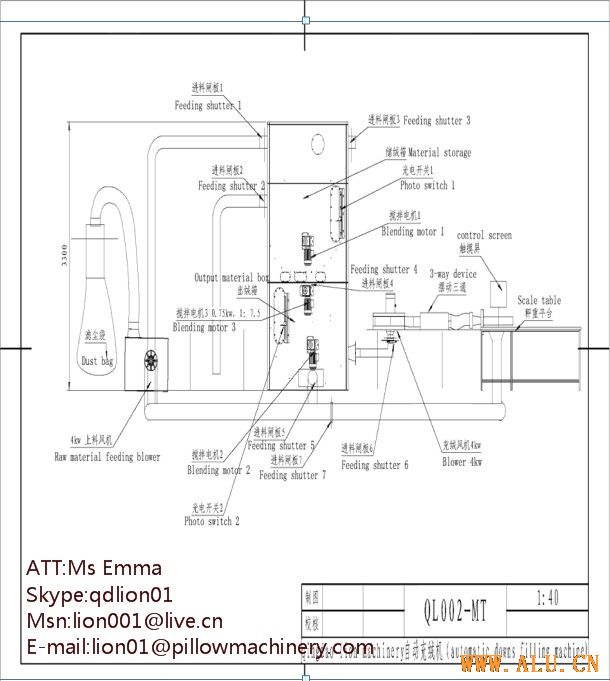

Equipment: Mixer with vacuum feeding system---Blower---Filling table
Voltage: 480v 60Hz 3phase
Power: 9.5kw
PLC: Siemens
Material: Down、feather
Hopper capacity: 10-15kg
Air pressure: 0.6-0.8Mpa
Capacity: Min.60-80kg/h
Operator: 1 person
Weight: Min. 1.1 ton
Description:
The developed down and feather filling machine is assembled with raw material storage; vacuum feeding blower, hopper and filling device.
Automatic vacuum material feeding blower will send the material into the hopper automatically that already set up from the PLC control screen.
The alarm system of the hopper will give sense when the material is not enough for filling; the feeding blower can be started again once choose the feeding mode from the control screen.
Automatic material exchanging system can be started by choosing the material exchanging model from the control screen when necessary.
All electricity key parts are adopted by the Siemens and ABB brand.
There are 2 different control function options in the control system that adjustable filling time and the filling time controlled by foot switch according to different productions.
Dust and extra material vacuum collection system.
A scale is assembled to the operation table that required by customer’s requirement, which will give sense to the PLC system to re-adjust the filling time automatically.
Totally closed design to keep the entire producing environment clean.
