【Sell】

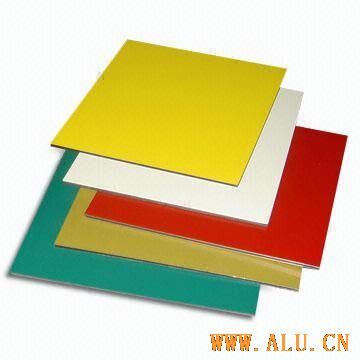

Aluminum Composite Panel
Click to see big pic
Product Name:
Aluminum Composite Panel
Sort:
Aluminium-Plastic Panel
Company:
Taizhou Shangxiang Composite Panel Co., Ltd.
Location:
ZheJiang
Contact Person:
Post Time:
2024/9/7
Free Member
Taizhou Shangxiang Composite Panel Co., Ltd
Tel:
+86-576-8817 8010
Fax:
+86-576-8817 9618
Add:
No. 109, Middle Airport Road, Jiaojiang, Taizhou, Zhejiang, China
Post Code::
E-mail:
tommyzhang680@gmail.com
Details
1. Product Description:
① Composition & Material
1) Front side: aluminum sheet coated with PVDF (Kynar 500) or polyester.
2) Core: unbreakable low density PE or Fireproof Plastic.
3) Rear side: aluminum sheet coated with polyester.
② Aluminum sheet thickness (Al. alloy 1100,3003)
0.50x0.50mm, 0.45x0.45mm, 0.40x0.40mm, 0.35x0.35mm, 0.30x0.30mm,
0.25x0.25mm, 0.20x0.20mm, 0.15x0.15mm, 0.10x0.10mm, 0.08x0.08mm,
0.06x0.06mm
③ Sizes
1) Panel standard dimension: 1220x2440 mm
2) Panel thickness: 3mm , 4mm, 5mm, 6mm
3) Panel width: 1000-1575 mm upon your requirements.
4) Panel length: 2440-6000 mm upon your requirements.
④ Finishes
1) coated with PVDF
2) coated with PE
⑤ Quality Warranty: PVDF 20 Years, PE 15 Years.
⑥ MOQ: 1000sq.m./color in standard size, 2000 sq.m./color in special size.
⑦ Color: more than 50 kinds of standard colors, special colors are available.
2. Features:
① Excellent fireproof property.
② Super peeling strength.
③ Perfect cold resistance performance.
④ Super flatness and smoothness.
⑤ Superior weather, corrosion, pollutant resistance.
⑥ Even coating, various colors.
⑦ Superior impact resistance.
⑧ Lightweight and easy to process.
⑨ Easy to maintain.
⑩ No color fading with long-term antipollution performance and anti-scratching wearable.
