> 14D drawing machine of aluminium wire wraped with copper
【Sell】
14D drawing machine of aluminium wire wraped with copper

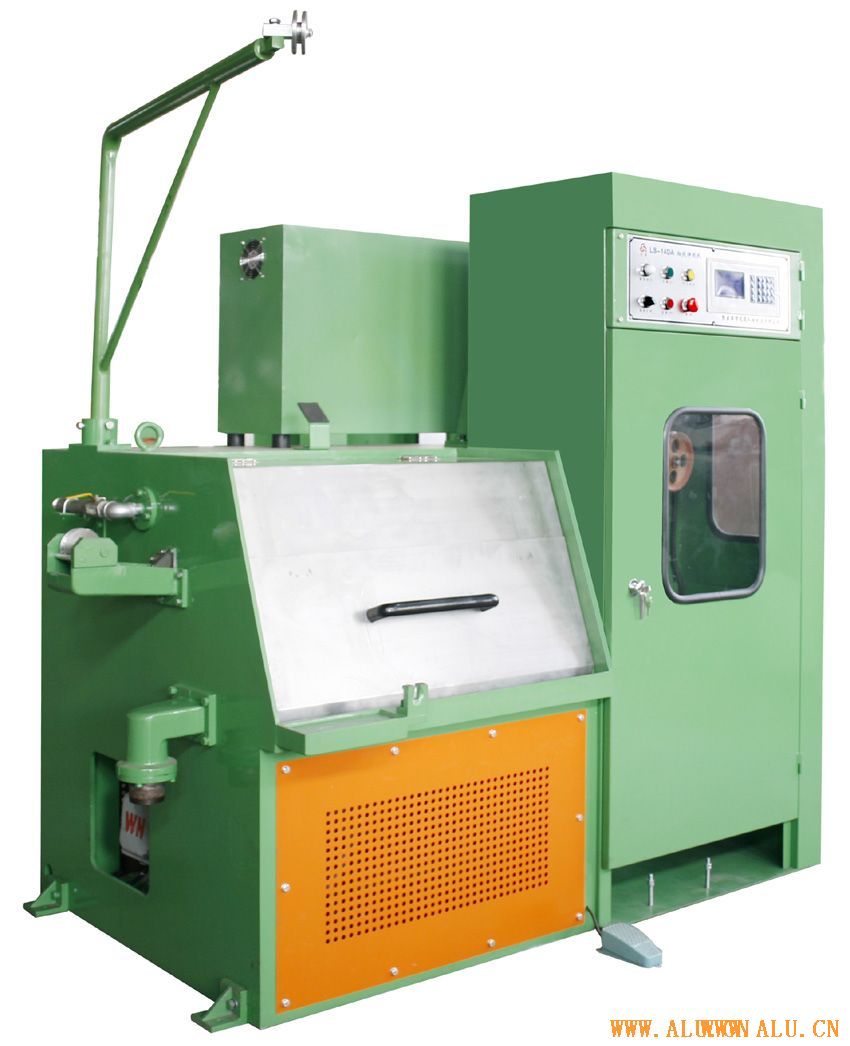

Click to see big pic
Product Name:
14D drawing machine of aluminium wire wraped with copper
Sort:
Others
Company:
Jiangsu Zhangjiagang Longshen Machinery Manufacturing Co., Ltd..
Location:
Contact Person:
Xu Guohua
Post Time:
2024/12/31
Free Member
Tel:
13285139638
Fax:
0512-58434182
Add:
No.88, Jinxiang Rd., Tangqiao Town, Zhangjiagang City, Jiangsu Province, China
Post Code::
E-mail:
xuguohua9@sina.com
Details
Parameter of 14D drawing machine of aluminium wire wraped with copper
Mode of electric control Analogy electrical machine/Numerical control of computer
Power control Double frequency conversion control
Max eye molds 14
Diameter of wire inlet φ0.80—φ2.05mm
Wire diameter of turnoff φ0.25—φ0.60mm
Max wire speed max.1200m/min
Slip ratio 15%
Fix speed capstan slip ratio 8%
Final slip ratio 0%---2%
Body structure Iron plate sealed and annealed
Capstan Sprayed with Tungsten
Main motor 15kw
Spooler motor. 5.5kw
Max diameter of capstan φ316mm
Diameter of fix speed capstan φ268mm
Size of enrolling axis max.φ380
Mode of wire winding Pressed by tipped screw
Mode of wire ranging 90w decelerating motor of strap wheel
Mode of transmission Flat strap
Adjusting system Automatic control of computer over coiling
Coiling control Automatic controlled pid position altering inspection
Equipment of position altering inspection Heavy armed
Mode of tension adjusting Mode of counter weight
Max load 100kg
Mode of lubrication of wire winding Spraying
Drive Electromagmetism brake
Mode of lubrication of axis No oil
Voltage 380v50/60hz
Oil consumption of wire widing 40Kl/m
Exterior size 2000*1600*1900
Machine weight 2200kg
