Detail Information

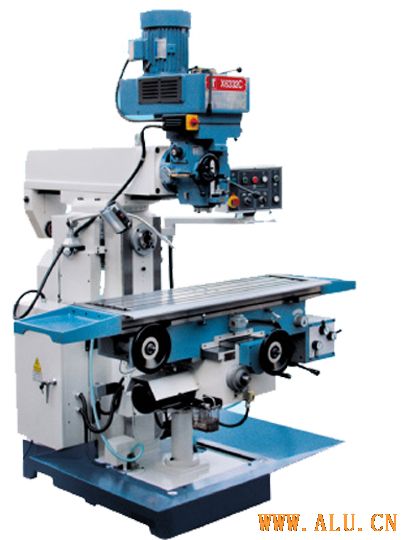

SPECIFICATION UNIT X6332C
Spindle taper mm ISO40
Distance between spindle nose and worktable mm 150-550(V)
Distance between center vent of spindle and guideway mm 150-550(V)
Range of spindle speed r.p.m 70-3620(V) 60-1350(H)
Spindle travel mm 150(V)
Table size mm 1250 x 320
Table travel mm 800/300/350
Overall dimensions mm 1720 x 1520 x 2225
Motor power kw 3.7(V)2.2(H)
N.W/G.W kg 1770/1900
