Detail Information

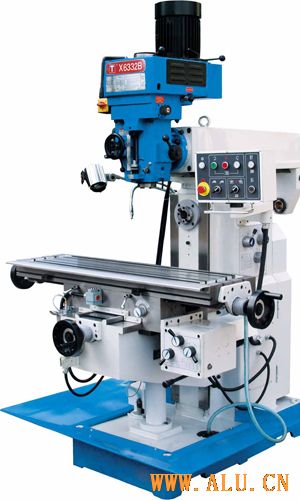

SPECIFICATION UNIT X6332B
Spindle taper mm ISO40
Distance between spindle nose and worktable mm 155-455(V)
Distance between center vent of spindle and guideway mm 0-300(V)
Range of spindle speed r.p.m 66-4540(V) 60-1350(H)
Spindle travel mm 120(V)
Table size mm 1250 x 320
Table travel mm 600/300/300
Overall dimensions mm 1720 x 1520 x 2225
Motor power kw 3.7(V)2.2(H)
N.W/G.W kg 1550/1650
