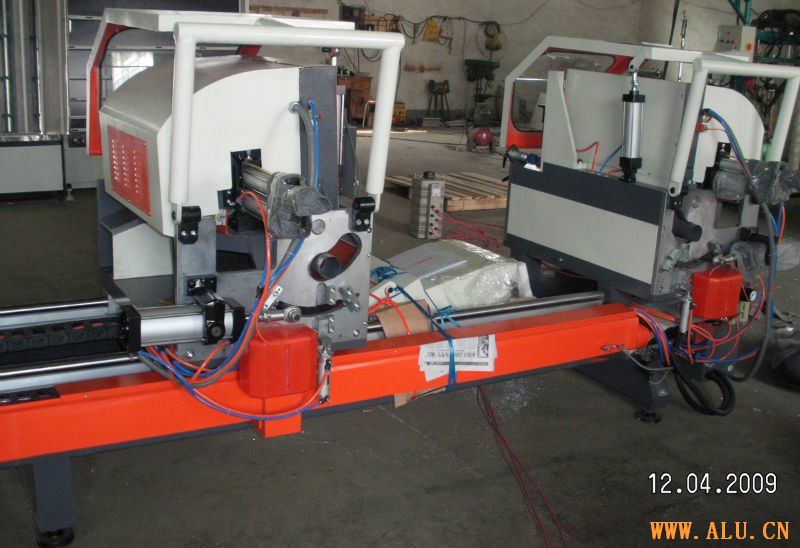

Product Name:CNC Double-head Precision Cutting Saw for Aluminum Profile
Sort:Others
Company:Jinan Sunny Machinery Co.,Ltd.
Location: China
Contact Person:Awen Yin
Post Time:2010/9/21
Free Member
Jinan Sunny Machinery Co.,Ltd.
Tel:86-0531-86327987
Fax:
Add:Yaoshan Industrial park,Jinan city
Post Code::
E-mail:sunnyawen1@gmail.com
Detail Information
Function:
Used in aluminum door & window and curtain wall profile cutting. Feature Adopt NC technology, and automatically finish various sizes of profile cutting. Right saw head motion adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and balanced work. Serial optimized length date can be input at the same time to realize continuous cutting. Midship auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient.
Technical Parameter:
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Power: 380V 50HZ
Motor power: 2.2KWx2
Cutting angle: 90 45 65.5 (22.5) (degree)
Saw blade standard: 500x4.4x30xZ120
Cuttting length: 400x4200mm
