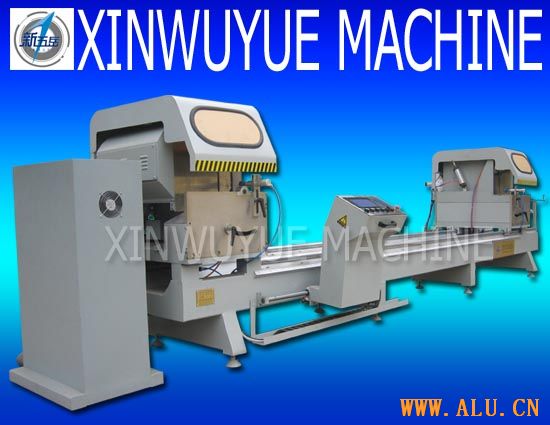

Product Name:Window machine--Double-head Cutting Saw CNC for Aluminum Window And Door LJZ2-CNC-500X4200
Sort:Aluminium Window&Door
Company:Jinan Xinwuyue Machinery Factory
Location: China
Contact Person:Macy Wang
Post Time:2009/7/24
Free Member
Jinan Xinwuyue Machinery Factory
Tel:86-531-88268516
Fax:+86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,china
Post Code::250101
E-mail:xwywang@hotmail.com
Detail Information
1 .Imported CNC system.Drive system uses a digital AC servo motor and drive,ball screw drive mode.
2. Cutting angles are 90, 45, 22.5.Locating from two directions,clamping, accuracy and stability.
3. Imports of high-quality aluminum special carbide saw blades to ensure accurate cutting precision.
4. High-precision spindle make a smooth blade rotation.Effectively improve the quality of the cutting surface.
5. The saw feeding system adopt damping cylinder to ensure that the saw is moved steadily.The saw blade in and out system is linear guide.
Technical Parameter:
Working pressure 0.5Mpa-0.8Mpa
Air Consumption 200L/min
Cutting length Max:4200mm Min:400mm
Cutting width Max:135mm
Cutting height Max::300mm
Cutting angle 90 ° 45 ° 67.5 ° (22.5 °)
Size: (width × high × long) 5680mm × 1500mm × 1600mm
Weight 2100Kg
