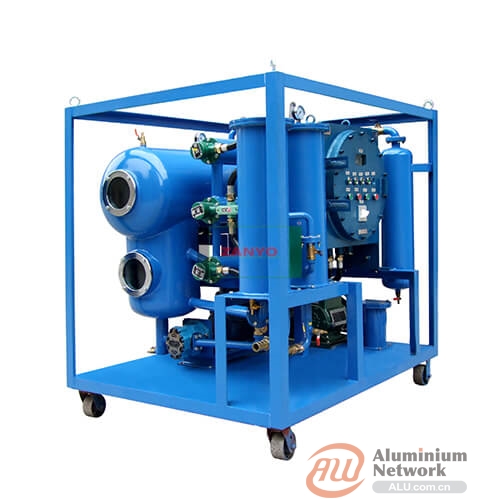

Fully Explosion-Proof Oil Purification System

Performance and Usages

Fully Explosion-ProofOil PurificationSystemis widelyused in flammable, explosive areas. It is used for purifying lubricating oil, turbine oil, hydraulic oil, insulation oil, etc. , On the basis of vacuum oil purifier, adopted full explosion-proof designing, to make it meet the requirement of explosion-proof environment.Explosion-proof Grade (Exdia ¢ò BT4) (Exdeib ¢ò CT4) two types. it can meet the higher requirements of explosion-proof workshop or areas, to ensure the reliability and security of oil filtering hazardous areas.

ZYD-E Transformer Oil PurificationSystemcan quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectricstrength, effectively making sure electric equipments working safely and normally.

ZYD-E can be used for filtration of more than 110V and 110KV above substation live line work onsite. Meanwhile, ZYD-ETransformer Oil PurificationSystemcan be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Technical Features

• The whole machine is designed full explosion protection, it is to guarantee the safety operation under special environment.


• “T ”type double vacuum separation technology, doublestages thin film drying degassing technology, double evaporation area and degassing time.


• Control System: full explosion-proof optimized design of control interlock protection device, overpressure alarm and protection, phase sequence protection, to ensure whole machine working stably for a long time. Automatic pressure alarm system, automatic overload protection system, automatic constant temperature system, automatic bubble elimination system, automatic protection of blowout prevention and other advanced technologies, to ensure the safe operation of untended operation.


• Oil Transferring System: adopt to choosefull explosion-proofoil pump. Special material and special performance curve ensure that oil flowing will never cause gap discharge to bringacetylene, oil treatment process and equipment performance is in the leading position.


• Patented degassing tank: anti-foam structure &Dual electronic foam monitoring system “( key components are from Switzerland), completely eradicating oilentering intovacuum pump.


• Oil atomized particles size is less than 50um, largelyincreasing efficiencyfor water molecules and gas molecules escapingfromoil molecules.


• Full Explosion-Proof Heating System, vigorously increase contact area between heater and oil (2w/cm2), reduce the surface temperature of heater, and prevent oil cracking and aging.


• To install liquid level and temperature protector of heater, prevent instantaneous high temperature of heater.


• Vacuum pumpcooler preposition,toreduce waterget into vacuum pump, reducethe frequencyto changevacuum pump oiland extend vacuum pumplifetime.


• High precision filtering element, fine accuracy is 1 micron£¨optional: 0.5 micron£©,β≥


• Outlet oil pressure protector, to monitor pressure of oil filters all the time,effectivelyprotectingmachine and operators.


• Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.


• Adopt the high pressure oil pump,oil transmission stable, low noise, long life


• Using famous brand high quality components, performance is stable and reliable.


• Automatic float ball &electronic oil level automatic controllingsystem, to realize unattended operation.


• Easy operation and trouble reminderand trouble shooting tips.
