Detail Information
Production Description:

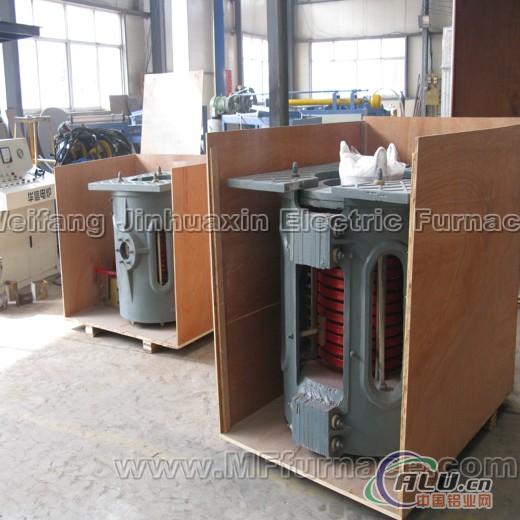

1)Aluminum Shell Intermediate Frequency Induction Furnace for melting
2) With Reduction Gear
3) Melting Copper
4)0.15-3.0 tons capacity
3.Usage: Medium Frequency Induction Furnace Mainly used in melting steel, iron, copper, aluminum and alloy, is with high melting efficiency, good electricity saving effect, good metal component uniformity, less burning loss, speedy temperature rise, easy control of temperature, is suitable to all kinds of metal melting.
4.Characters and Advantages:
1) Constant power output, speedy melting, good electricity saving efficiency.
2) Zero-voltage sweep-frequency style start, adapts to requirement of frequently start.
3) Comprehensive protection functions, such as overcurrency protection, overvoltage protection, current-limiting protection, voltage-limiting, water-break protection, and default protection, equipment runs reliably under premise of melting speed guarantee.
4) Easy to operate, suitable for all casting process.
5. Package: Plywood cases and nude
+
Furnace Model GWL-0.15T-100KW/1S GWL-0.3T-160KW/1S GWL-0.5T-250KW/1S GWL-0.75T-350KW/1S GWL-1T-500KW/0.4S GWL-1.5T-750KW/0.4S GWL-3T-1500KW/0.4S
Rated Capacity T 0.15 0.3 0.5 0.75 1 1.5 3
Rated Power KW 100 160 250 350 500 750 1500
MF Frequency KHZ 1 1 1 1 0.4 0.4 0.4
Power Input Voltage V 380 380 380 380 380 380 720
MF Output Voltage V 1500 1500 1500 1500 1500 1500 1500
Temperature 780 780 780 780 780 780 780
Melting Time Minutes/batch 53 67 71 76 65 65 50
Electricity Consumption KWH/T 640 630 610 570 540 520 500
Transformer Capacity Required KVA 125 160 250 360 630 800 1600
Water Cooling Consumption T/H 7 8 9 13 17 22 34
