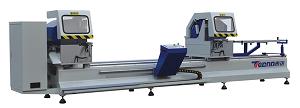

Aluminum Window And Door £¨Curtain Wall£©Machine-CNC Double Mitre Saw

Introduction£º ¡ò Used for profiles such as aluminum profile and curtain wall, two heads cutting angle 90°45° 67.5° (22.5°) are available. ¡ò Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors. ¡ò Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, photoelectrical switch, and photoelectrical cells etc. Complete Japan CNC system results highaccuracy and smooth working. ¡ò Uniform speed feeding and smooth motion due to air-draulic damping cylinder. ¡ò Saw blade feeding system adopts imported linear guide kinematic pair results high accuracy. ¡ò Automatic protecting guards result convenience and safety. Technical Parameter£º Model LJZ2-CNC-500×5000 Input voltage 380V/50Hz Input power 6.0Kw Air pressure 0.5~0.8MPa Air consumption 200L/min Motor rotation speed 2800r/min Cutting length 400~5000mm Cutting width 10~130mm Cutting height 10~300mm Cutting angle 90° 45° 67.5° Saw feeding speed 0~3m/min Saw blade standard φ500×4.4×φ30×Z120 Overall dimension 6300×1700×1600mm
